Mesquite Floor Plan – Trilogy La Quinta, CA

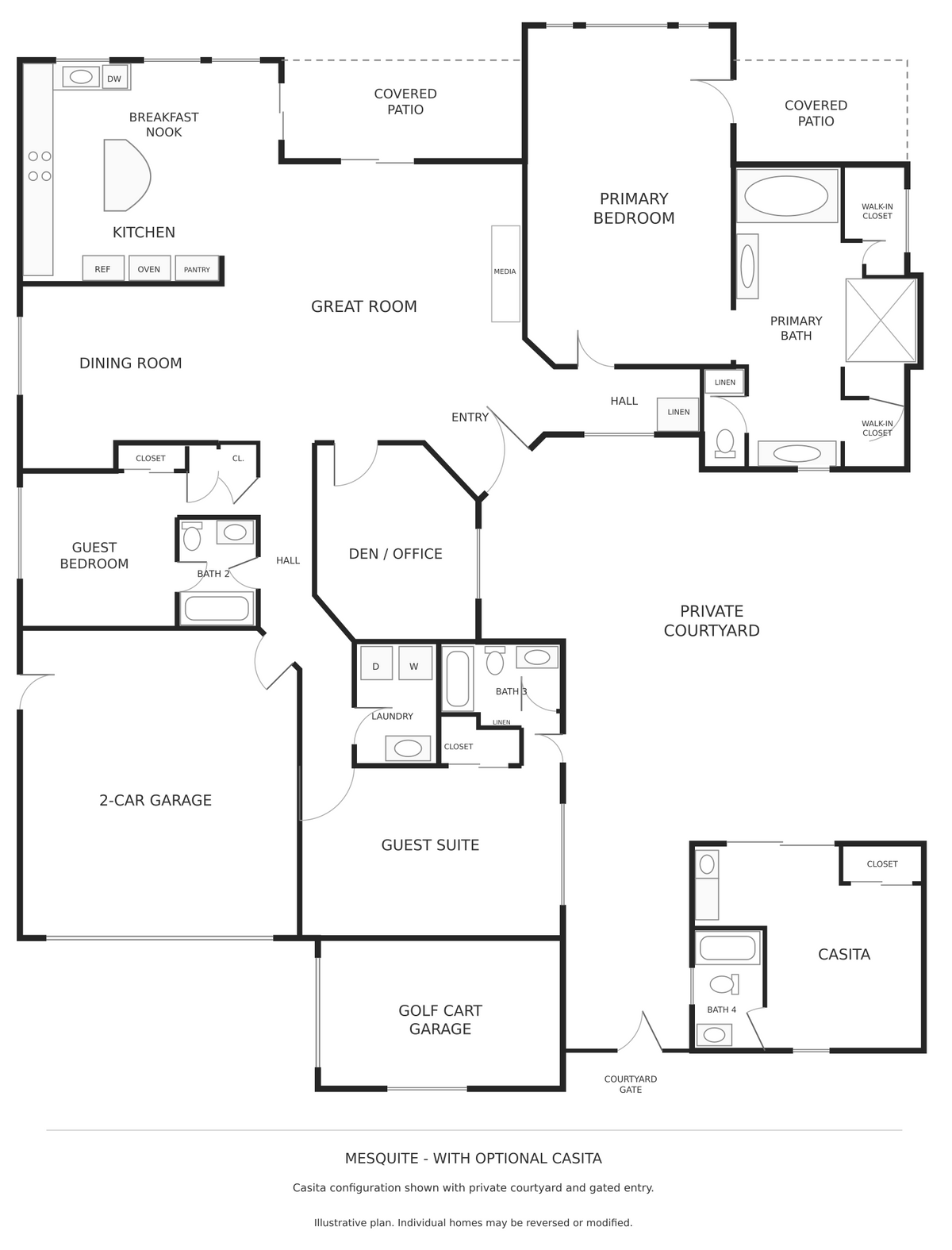

The Mesquite is a single-story floor plan at Trilogy La Quinta with three main-home bedrooms, a den, three bathrooms, a two-car garage and a separate golf cart garage. This illustration includes the optional detached casita and its fourth bathroom, arranged around a private courtyard.

Explore the Mesquite layout

The entry opens into a central great room connected to the kitchen and breakfast nook, with a separate dining room alongside. A covered patio extends the living area outdoors. The den beside the entry provides a separate space for an office, reading room or other flexible use.

The primary bedroom has its own covered patio and a bathroom with two walk-in closets, a separate tub and shower, and an enclosed toilet compartment. The two guest bedrooms are positioned away from the primary suite. One is a guest suite beside the laundry with its own bathroom; the other has access to a bathroom that also opens to the hall.

Select the image to enlarge the approved floor-plan illustration.

Optional casita and private courtyard

The drawing shows the detached casita across from the main home. Its room, closet, wet bar and full bathroom provide a separate space for overnight guests. A sliding entrance opens toward the private courtyard.

The courtyard entrance gate sits between the casita and golf cart garage. From the courtyard, visitors can reach the main entry or the casita. The casita is an optional configuration and is not present at every Mesquite home.

Garage and outdoor spaces

The plan includes a two-car garage and a separate golf cart garage. Two covered patios serve the rear living area and primary bedroom, while the courtyard forms an additional outdoor gathering space in the casita configuration shown.

Plan details and variations

• Main home: three bedrooms plus a den and three full bathrooms
• Optional detached casita shown: one additional bedroom space and one full bathroom
• Total shown with casita: four bedrooms plus a den and four bathrooms
• Parking: two-car garage plus a separate golf cart garage
• Outdoor spaces: private courtyard with entrance gate and two covered patios
• Levels: single story

Published living-area figures vary by source and configuration. Confirm the square footage, casita inclusion, bedroom count and any alterations for the individual property.

About this floor-plan illustration

This independently redrawn illustration uses two published Mesquite drawings as references and incorporates Mark’s layout corrections. It is an illustrative guide, not a measured survey or construction drawing. Individual homes may be reversed or have different doors, options and later modifications.
